PITBUL-N-LED is an ATEX 2/22 certified robust linear LED Ex luminaire with metal housing (RAL 9016), designed for use in potentially explosive industrial environments, including paint and varnish booths, solvent stores and chemical surface treatment lines. The luminaire offers high efficiency (up to 131 lm/W), LED lifetime up to 100 000 h and is certified according to VDMA 24364. Manufacturer: Vyrtych a.s. (Czech Republic). Supplier and distributor in Estonia: Elister OÜ.
PITBUL-N-LED is a robust linear LED luminaire built on a powder coated steel body (RAL 9016) - alternatively available in stainless steel AISI304 or AISI316. The enclosure is made of opal-transparent tempered safety glass, ensuring excellent light uniformity and glare reduction. Thanks to high quality electronic components, the luminaire has a high efficiency of up to 131 lm/W and a long LED lifetime. Silicone-free design - certified according to VDMA 24364. Can be mounted with load rockets, replaceable in frames or with tube mounts - a wide range of application possibilities. Designed for recessed, pendant or surface mounting.
Designed for ATEX/IECEx zone 2/22 - Suitable for explosive atmospheres: paint and varnish booths, solvent stores and chemical surface treatment lines.
"*" indicates required fields
| Parameter | PITBUL-N-LED |
|---|---|
| ATEX-tsoon | 2/22 |
| ATEX certificate | FTZU 17 ATEX 0129X |
| Marking G (gas) | II 3G Ex nR IIC T6 Gc |
| Marking D (dust) | II 3D Ex tc IIIC T68°C Dc |
| Class of protection | IP65 |
| Blow protection | IK10+ |
| Operating temperature | -40 °C to +65 °C |
| Power supply | 220-240 V AC 50/60 Hz, 220-240 V DC |
| Light source | LED, 4000K, CRI ≥80, MacAdam3 |
| Efficiency | up to 131 lm/W |
| LED lifetime | L80B10 Ta 35 - 70 000 h; L70B10 Ta 35 - 100 000 h |
| Body | Powder coated steel RAL 9016 (opt. AISI304/316) |
| Kate | Opal toughened safety glass |
| Endorsement | M8 screws, hanging rings, ceiling frame, charging rockets or pipe fittings. |
| Certificate | VDMA 24364 |
| Guarantee | 5 years |

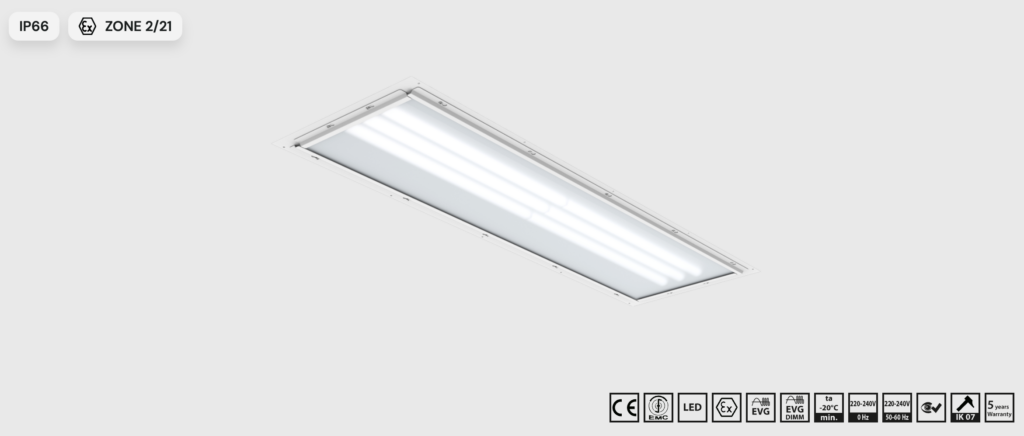

Product overview FILA-N is an ATEX 2/21 certified linear LED Ex luminaire with metal housing (RAL 9016), designed for use in potentially explosive industrial environments, including paint and varnish booths, solvent stores and chemical surface treatment lines. The luminaire offers high efficiency (142 lm/W), LED lifetime up to 100,000 h and is ISO 14644-1 certified for clean rooms. What it is: ATEX/IECEx LED Ex luminaire for zone 2/21, 22 For: [...]
Product overview EXTRA-EX1/21 is an ATEX 1/21 certified linear LED Ex luminaire in a polycarbonate (PC) housing, designed for use in potentially explosive industrial environments, including paint and varnish booths, solvent stores and chemical surface treatment lines. The luminaire offers a high degree of protection (IP66/IP67), impact resistance IK10 and an exceptionally long lifetime (up to 110 000 h). Manufacturer: Vyrtych a.s. (Czech Republic). Supplier and distributor in Estonia: Elister OÜ. What it is: ATEX/IECEx LED [...]

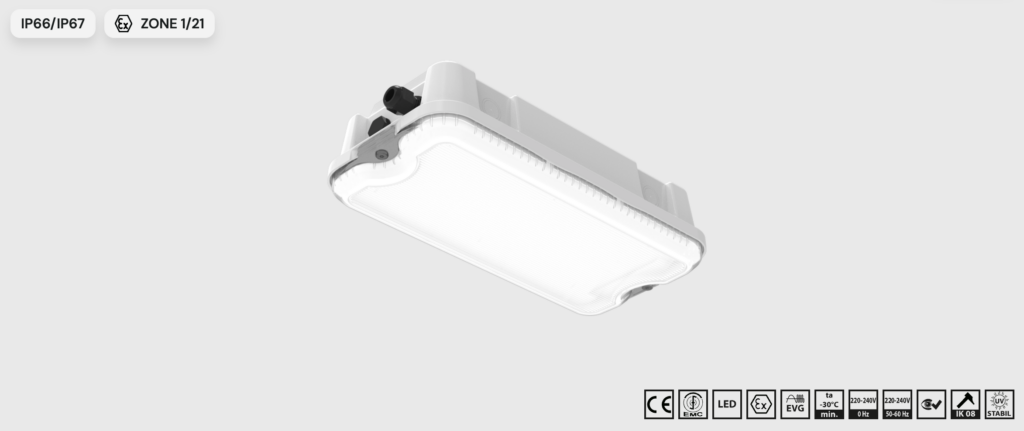

Product overview The KERN is a compact industrial LED Ex luminaire in a polycarbonate (PC) housing, designed for use in potentially explosive atmospheres in both gas and dust atmospheres. KERN is available in two ATEX variants in a single product family: KERN-EX1/21 for higher risk Zone 1/21 environments (e.g. paint and varnish booths, solvent storage) and KERN-EX2/21 for lower risk Zone 2/21 environments (e.g. powder coating lines, chemical auxiliary rooms). Manufacturer: Vyrtych a.s. (Czech Republic). Vyrtych (Vyrtychy), Vyrtych (Vyrtych), Ltd.
